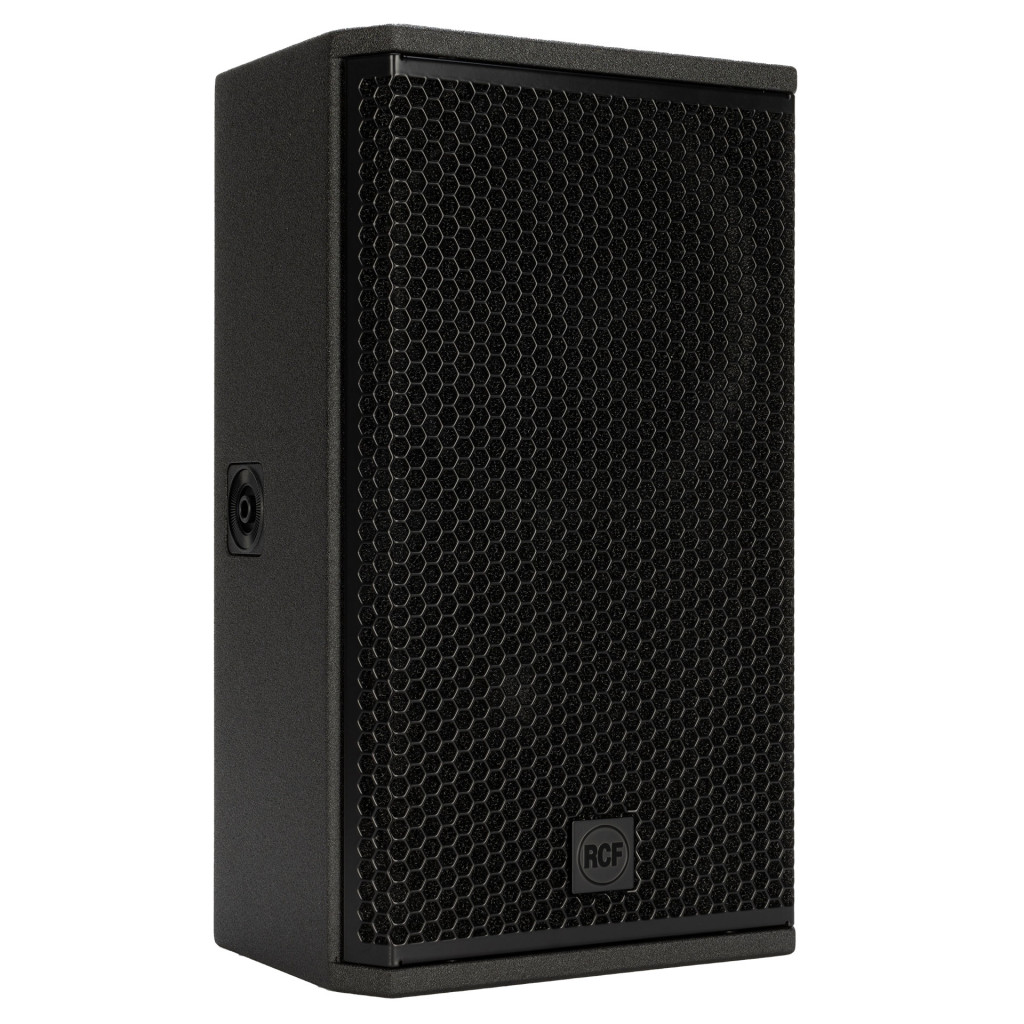

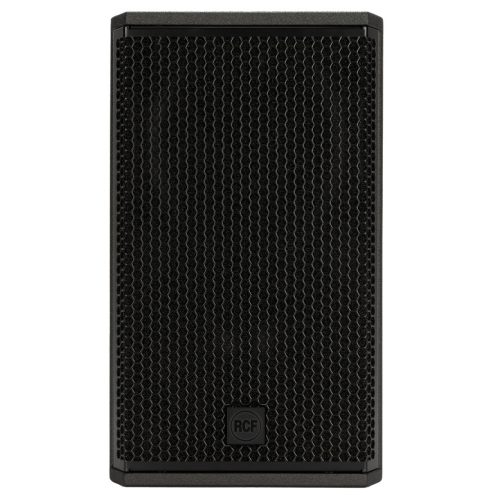

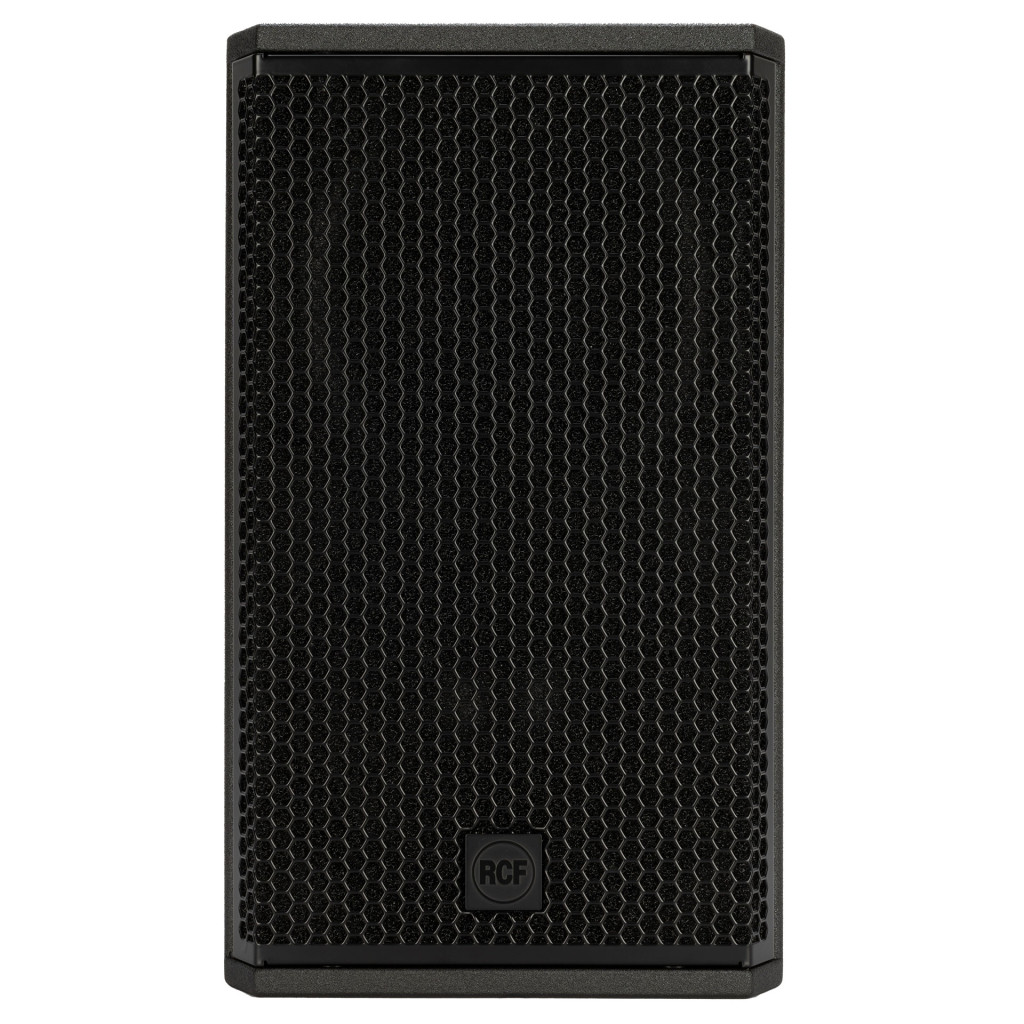

The RCF KX 10-A combines high SPL performance, precise directivity, and compact versatility in a truly professional active loudspeaker. Delivering up to 130 dB SPL, equipped with a rotatable 100° x 50° TRW horn, it ensures adaptable coverage and outstanding clarity in any setting.

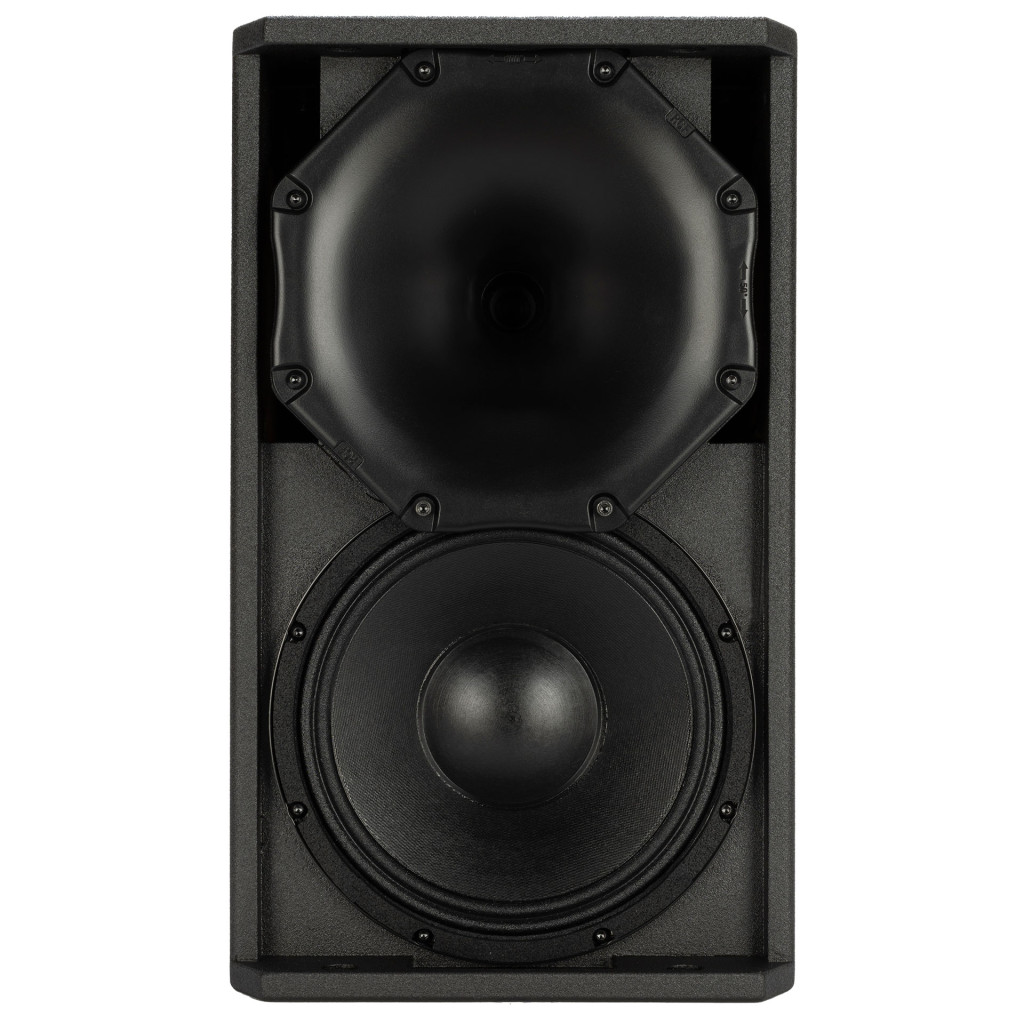

Its low-frequency section features a 10” neodymium woofer with a 2.5” voice coil, while the high-frequency section uses a 1.75” PKX dome neodymium compression driver. The system is powered by a two-channel 2000 W Class-D amplifier, with FiRPHASE and BMC DSP processing for superior phase response and sound fidelity.

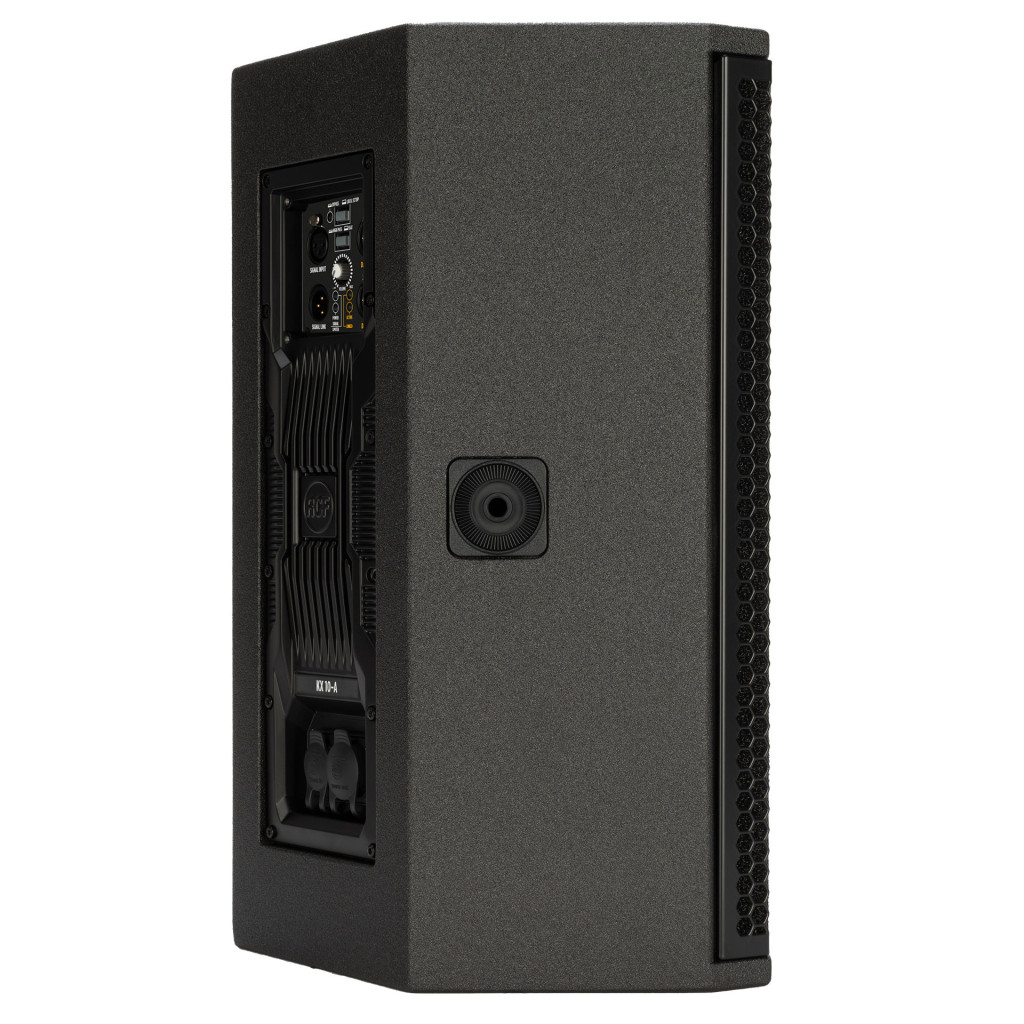

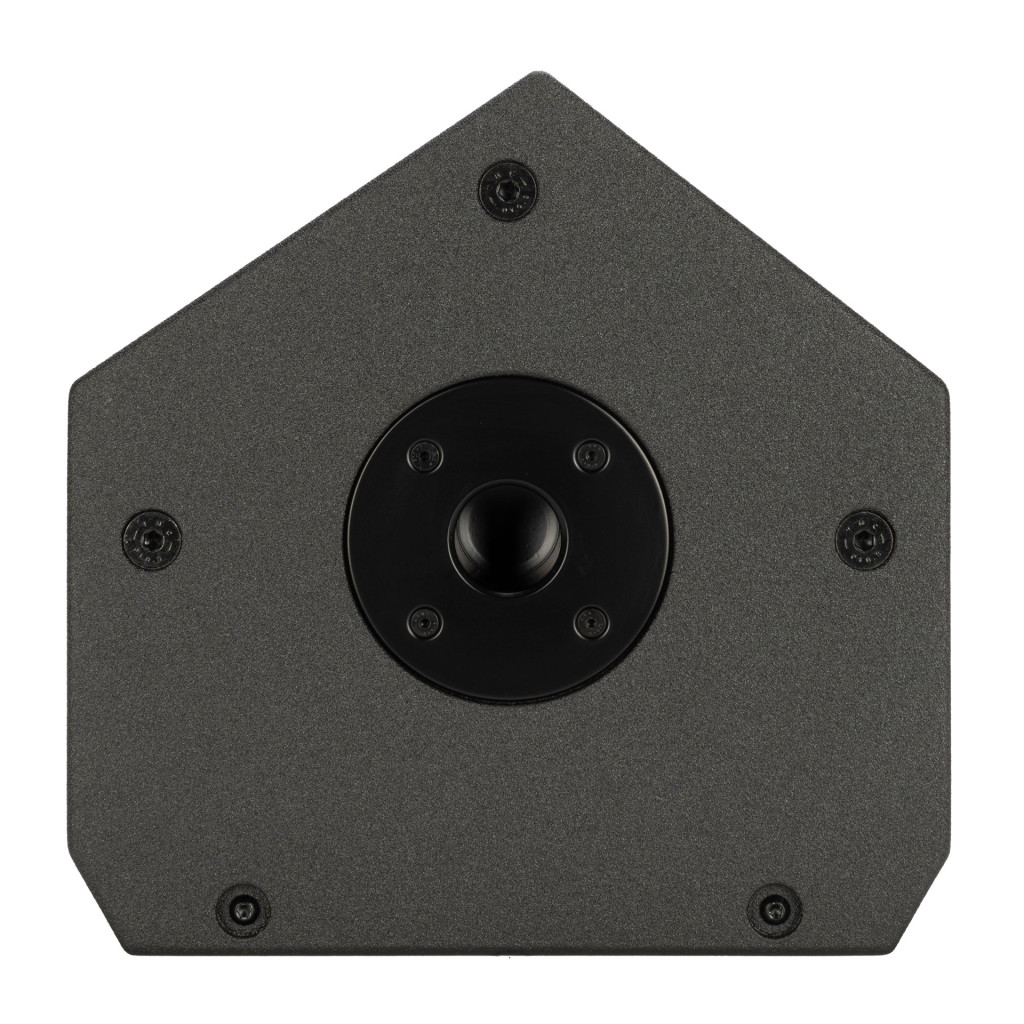

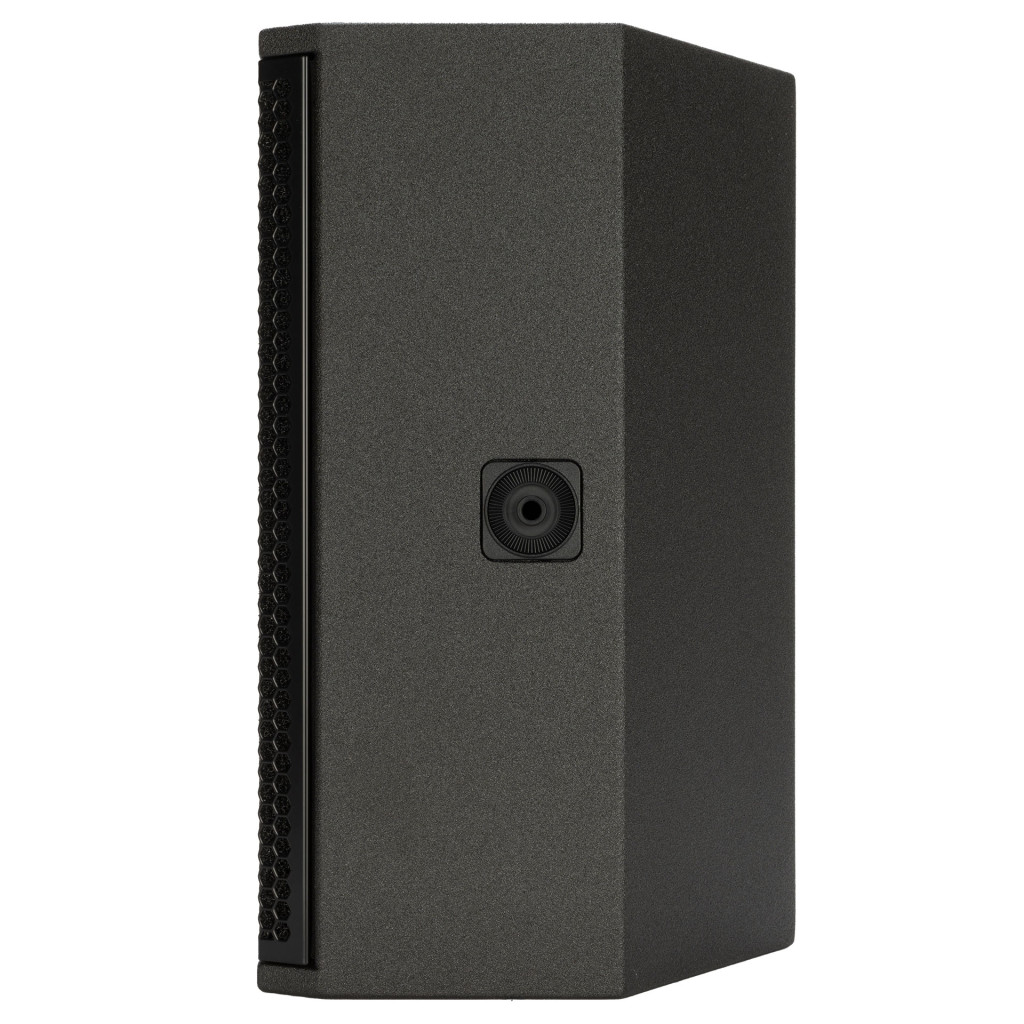

RDNet networked management allows remote control and monitoring, while the weatherproof enclosure with Quick Fit and M10 inserts ensures flexible ground-stacked, pole-mounted, or flown configurations.
With over 30 years of expertise, Elit Music proudly offers you cutting-edge RCF technology tailored for the most demanding professional applications.
Technical specifications:
Max SPL: 130 dB
Horn Coverage: 100° x 50° rotatable TRW
LF Driver: 10" neodymium, 2.5" voice coil
HF Driver: 1.75" PKX dome, neodymium compression
Amplification: 2-channel Class-D, 2000 W total
DSP: FiRPHASE and BMC processing
Networking: RDNet compatible

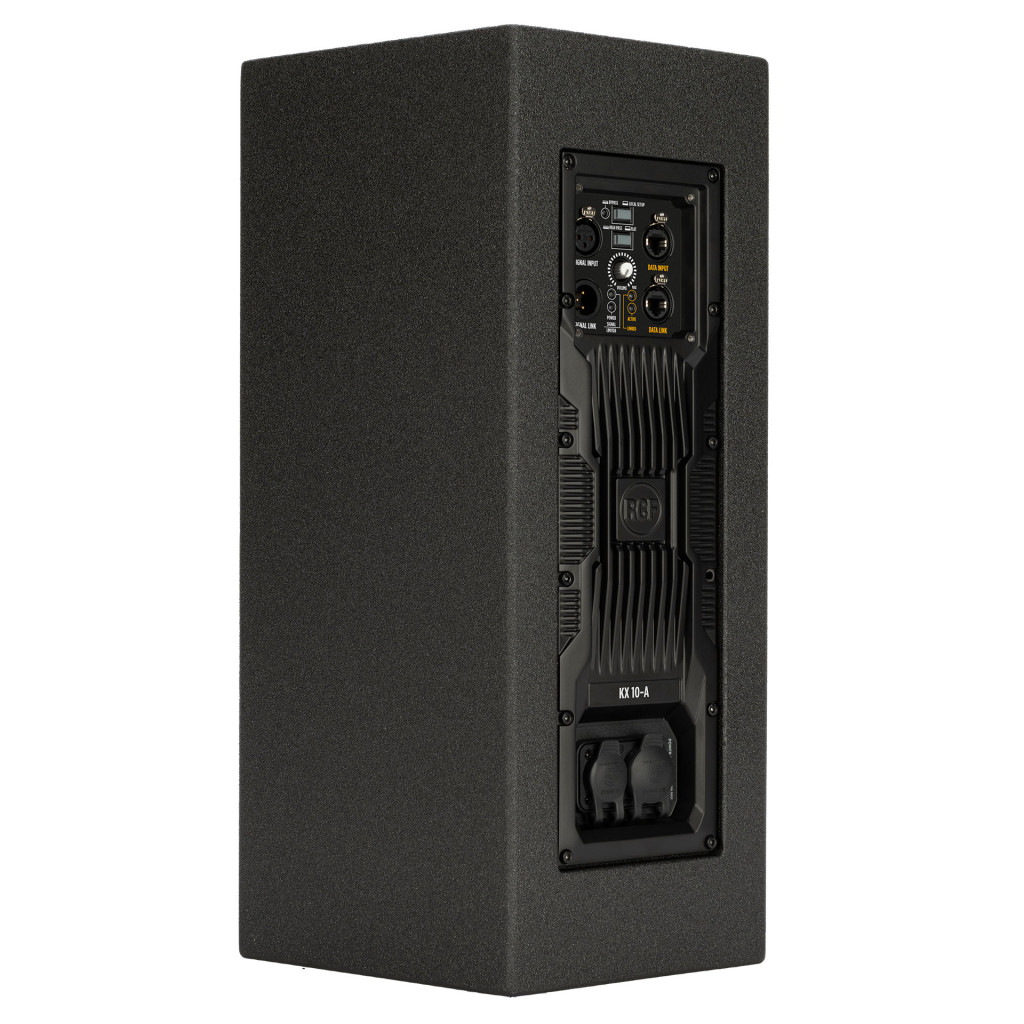

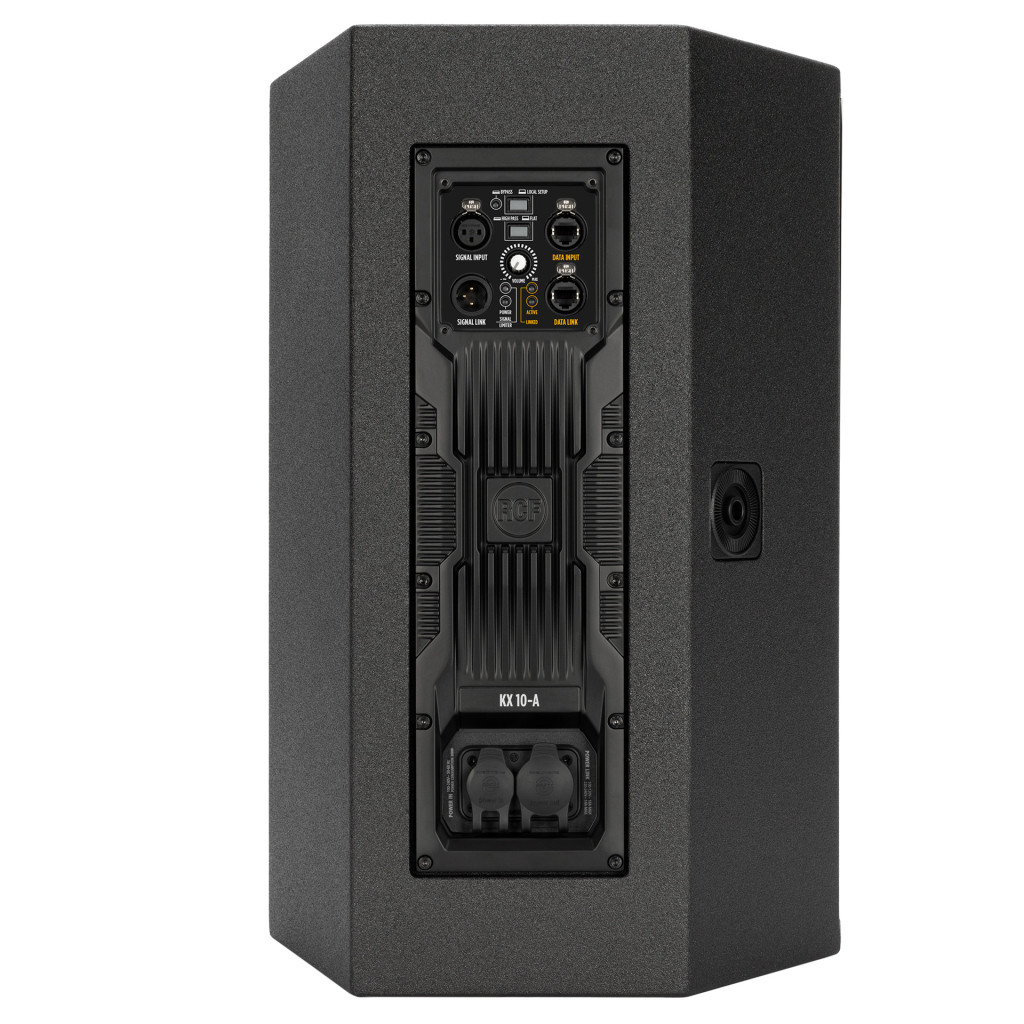

Connectors: powerCON TRUE1 TOP

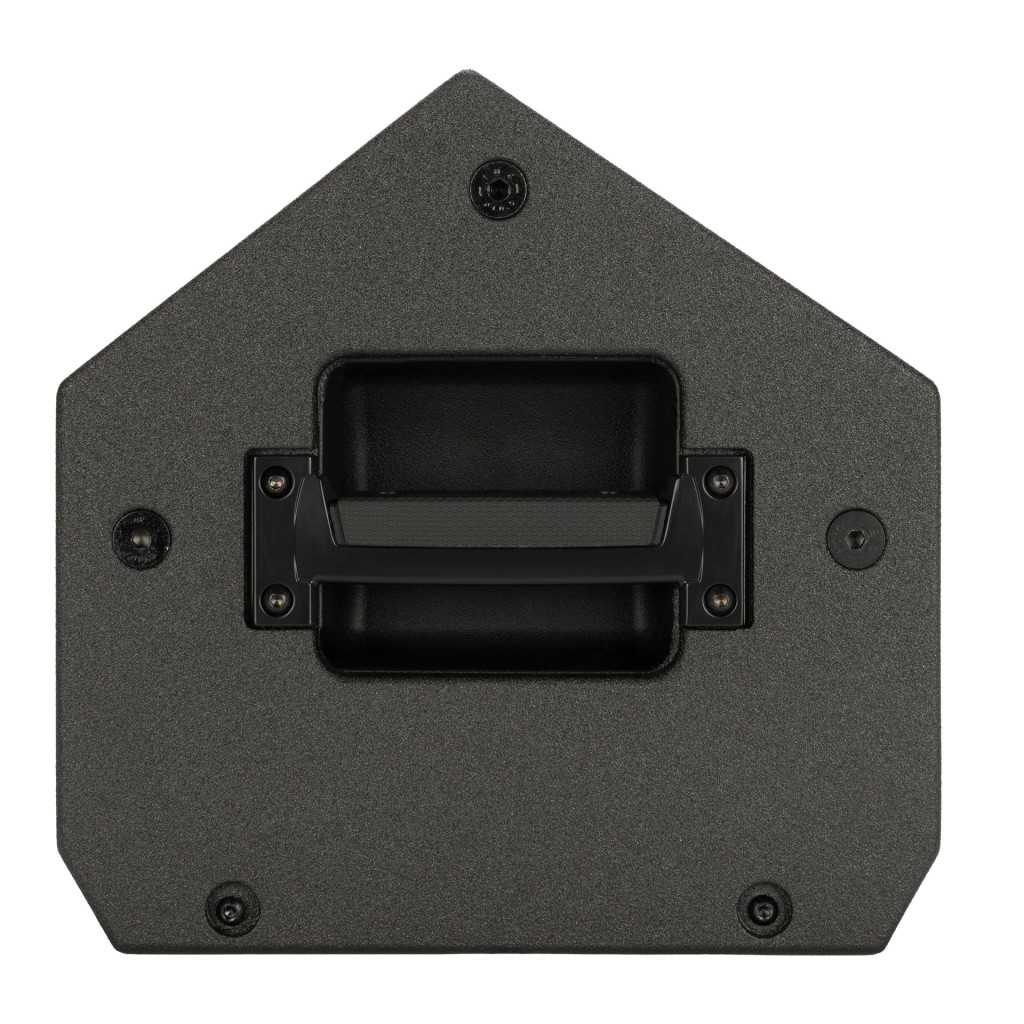

Enclosure: Weatherproof, Quick Fit and M10 inserts
Application: Portable PA, installation, flown or stacked
